Description
Whats Included

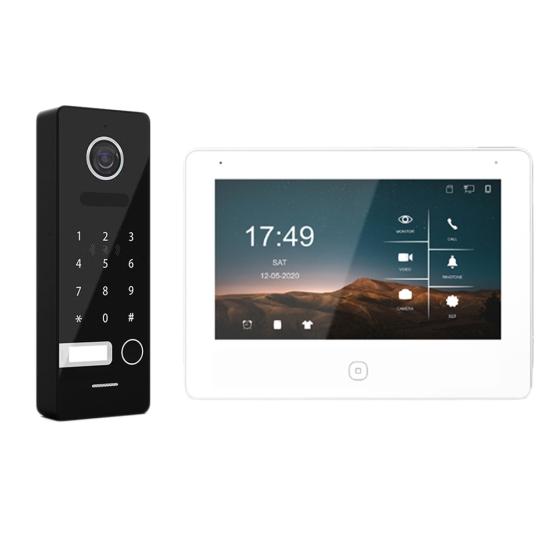

1x Platinum HD WIFI Intercom in White
1x Platinum 2MP HD Metal Surface Mount Front Door Unit with Built In Access Controller and RFID Reader
2x RFID Tokens
2x Power Suppies (1 for Monitor, 1 for Front Door)
1x Installation Screws, Bracket
1x Front Door Side Installation Bracket
1x Instructions
1x 16GB Pre Installed SD Memory
Overview
The Platinum video intercom is a cost-effective premium door entry solution providing HD colour resolution and modern monitor design with touch screen controls. The intuitive GUI allows for easy navigation of features such as internal communication, recording and monitoring of CCTV cameras.
Our unique system gives you the ability to view, hear, and speak with anyone at your doorstep using your mobile or tablet thanks to the built in WIFI function. You can be out the back entertaining in the garden or upstairs looking after the kids and still be able to see, talk or release the front gate or door using the TUYA App. In case you missed a visitor, the monitor has a SD Card memory function which can store and take snapshots or record based on advanced motion detection or when a doorbell press is triggered.
The metal IP66 rated 2MP door camera offers superior night vision due to the Smart IR filters that enhance color during the day and improve brightness at night. It offers a remarkable 120 degree wide viewing angles both vertically and horizontally to help identify and clearly see who is at the front door. The built in keypad allows you to open the gate with your very own personal password using the built in keypad or with an RFID card reader which allows you to scan registered cards/tags for quick, secure access. No more worrying about misplaced keys or lockouts!
The Platinum intercom is the perfect 4 wire system to all modern homes for security and lifestyle.

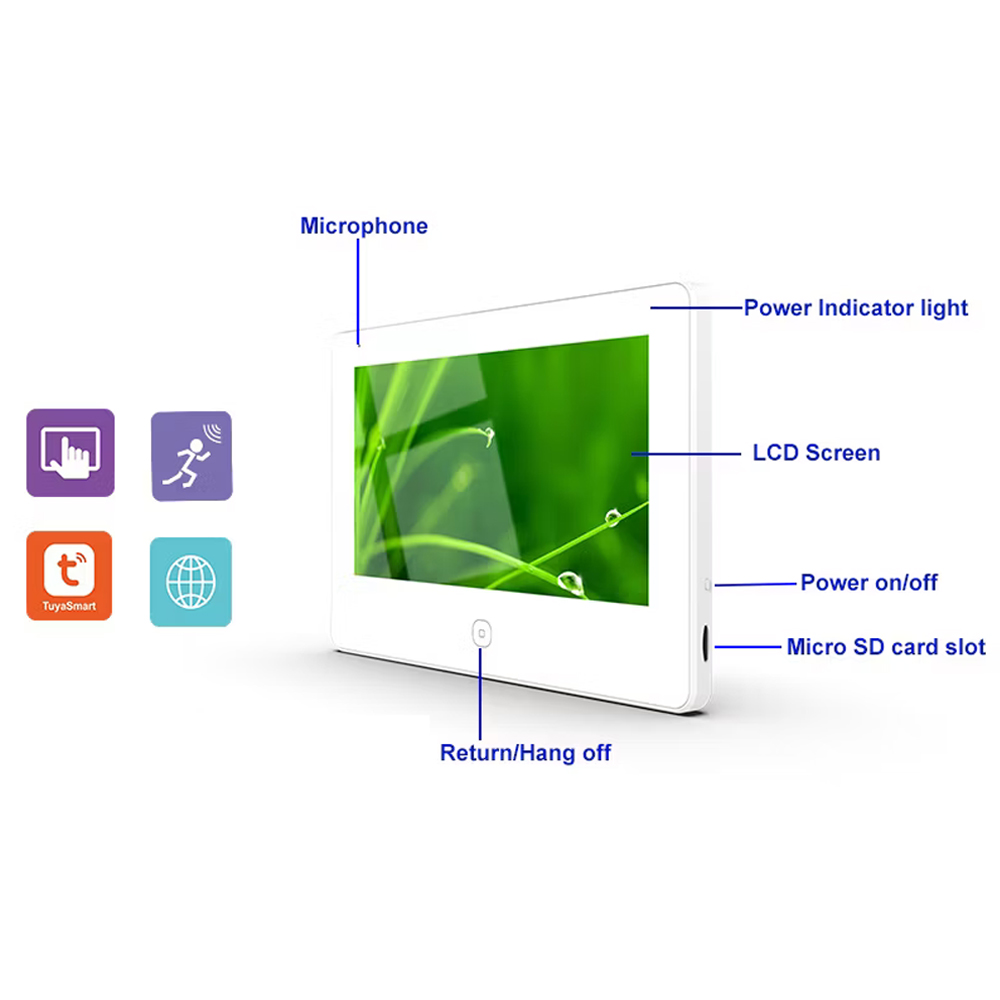

WIFI Monitor Features
- 4-Wire 1080P wifi video door phone with touch screen
- 7″ screen resolution 1024*600
- Powerful smart mobile APP talk & unlock
- Monitoring of video door bell or CCTV from mobile APP
- Video playback
- Human detection
- Time sync
- Push notifications
- Customize UI & Melody & Voice message
- Button light background
- Support max.128G(FAT32) & flash max.100pcs picture
- Lock control/Calendar/Alarm clock/No disturb
- Simple DVR motion detection/Photo frame/Multimedia manager
- Auto leave message function
- IEEE 802.11 a/b/g/n

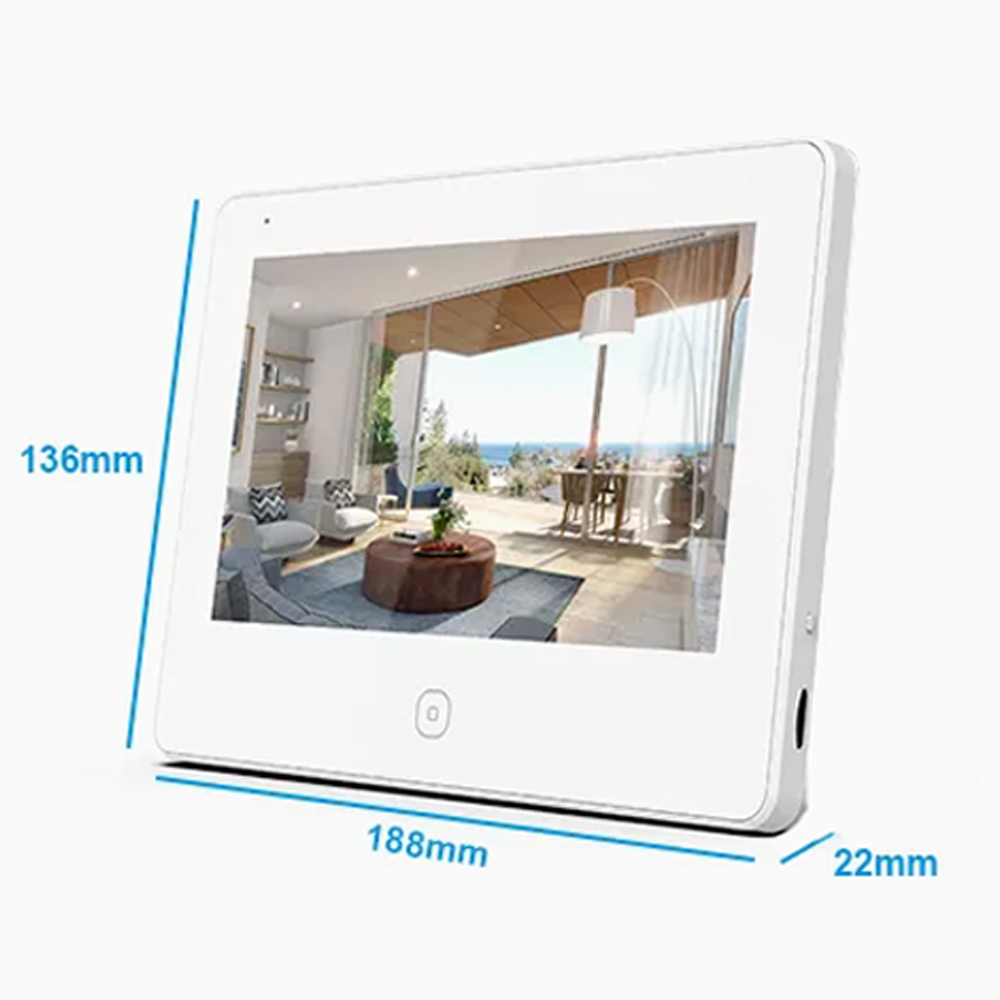

- Dimension:188*136*22mm
Front Door Unit Features
- 2MP HD 1080p Wide Angle 120 Degrees CMOS Camera
- Backlight compensation with Smart Infrared Nightvision Camera
- RFID Card Reader (Unlock the Latch with Token/Card)
- Personal password/ID card unlocking function with Keypad
- Comprehensive IP66 Waterproofing
- Luminous Touch buttons
- Name Plate
- IK07 Anti-vandal zinc alloy housing with Nano-glass shield for camera
- Supports 2 door entry
- 4 wires connection
- Supports lock control
Platinum HD intercom combines innovative features with precision engineering with some of the best features;

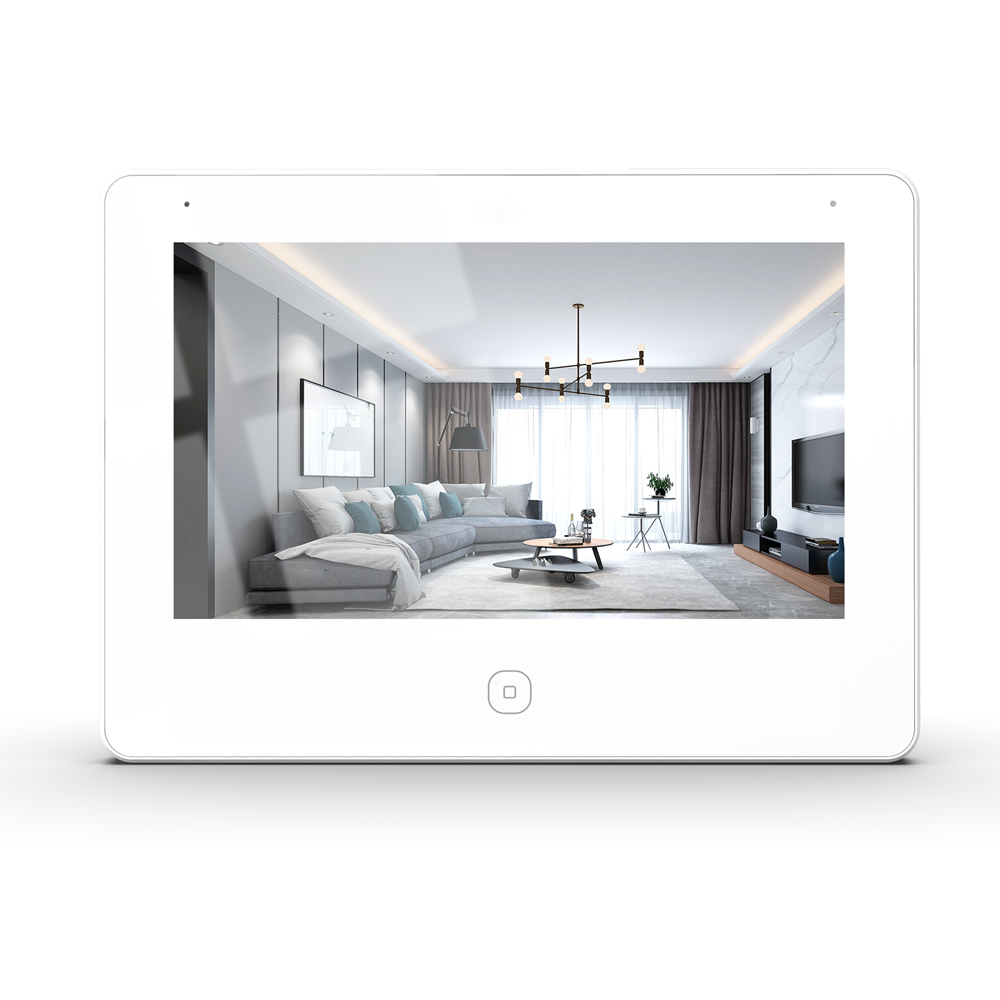

7” LCD HD MONITOR
Crystal clear 1024×600 HD display with touch screen and easy to follow GUI menu system.
EXPANDABLE SYSTEM
The monitor can support 4 monitors and 2x front door stations. All the monitors can see, hear, speak to the outdoor camera and unlock the door. Electronic locks can be added to give you more comprehensive protection for your home.
INTERCOMMUNICATION & CALL TRANSFER
When someone presses the doorbell, all the monitors will ring, you can answer and unlock the door with each monitor. All the monitors support call transfer or internal talk between indoor monitors.
ANSWER, TALK, MONITOR & RECORD THE DOOR USING THE TUYA APP
You can see, hear and speak to anyone at the front of your door from anywhere using the TUYA app app. You can even Leave a Message so when a visitor comes by and you are not home, the call panel automatically prompts the visitor to leave a message after 30s-120s of ringing. The master unit then records the file and saves it for later playback.

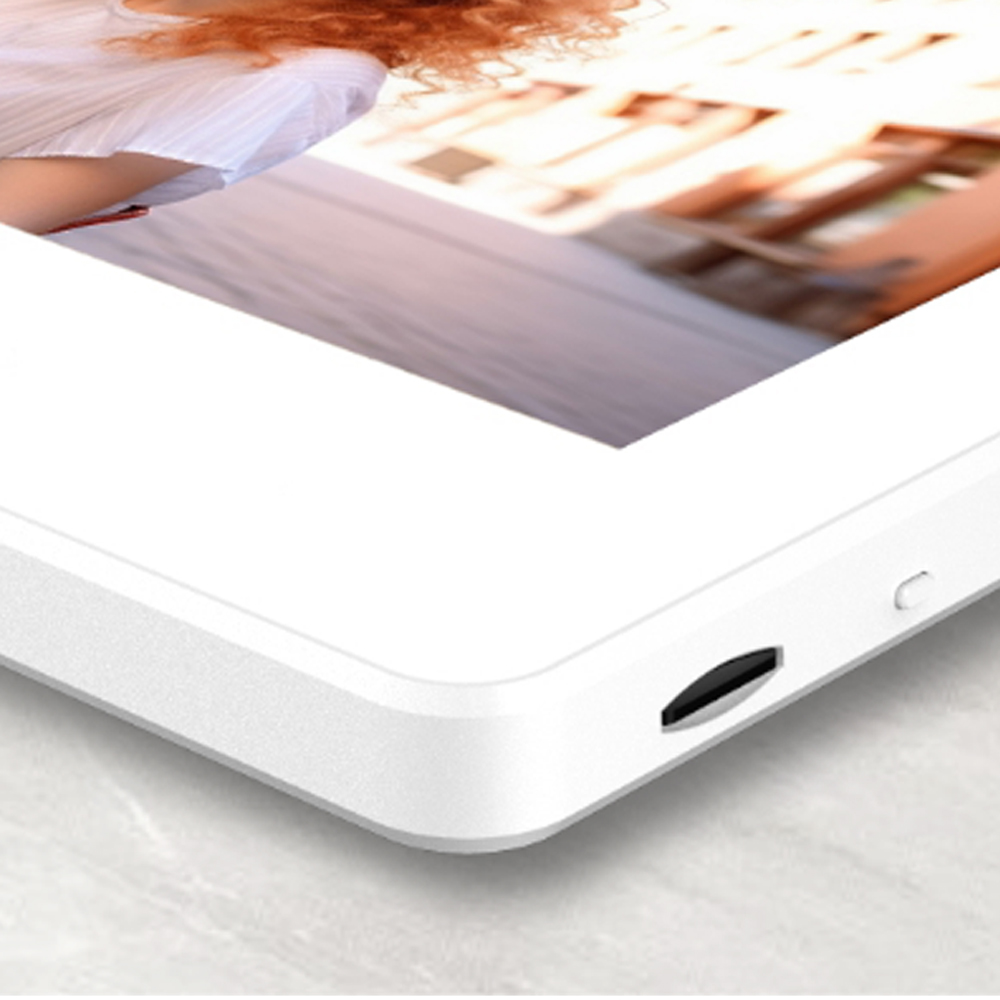

INTELLGENT MOTION AND MEMORY RECORDING WITH MICRO SD CARD & TUYA CLOUD
When a motion detect or doorbell press is triggered, the device will start a recording or capture a picture and save them in the Micro SD card or onto the TUYA smart home app cloud to protect your home every day. If CCTV cameras & sensors are connected to the system, an alarm trigger can activate recording to the MicroSD card.
WEATHER RESISTANT DOOR CAMERA
Front door housing made from an Zinc alloy panel that provides a comprehensive IP66 rating making it rainproof, dustproof and even anti-IK09 vandal proof.
KEYPAD AND RFID FOR CONVEICNCE
Simply enter your code on the front door keypad in order to open the gate or unlock the front gate. There are tokens included if you wish to touch or swipe through giving you convenience and added security
SUPERIOR IR NIGHTVISION WITH 2MP (1080P) WIDE ANGLE CAMERA
A 2MP (FULL HD) resolution wide angle camera (120°) comes equipped with the front door unit. It is built with Smart IR LEDS for better night vision. There are two crystal IR filters, one dedicated to color correction during the day while the other is used for enhancing the brightness at night.
4 WIRE SYSTEM
Easy to install and reliable 4 wire system. CAT5e /Cat6 up to 50m.
DOOR RELEASE FUNCTION
Flexible door release options. 12VDC output, N/O or N/C contacts.
CCTV CAMERA AND SENSOR CONNECTION
Connect max 2 CCTV cameras which can trigger recording if MicroSD card is fitted.* CCTV cameras must be AHD or CVBS.
MULTI LANGAUGE OSD MENU
The System supports English, Russian, French, Spanish, German and Chinese
1 YEAR WARRANTY
