Description
The Tesla Series range of C Curve Type A RCD/MCBs (RCBOs) are combined mechanisms that provide overcurrent and earth leakage protection. Made from the highest-grade components, they have been designed to comply with AS/NZS61009.1.
The 6kA rated breaking capacity with a trip rating of 30mA make these miniature RCBO combo’s the perfect choice for a product that needs to perform in a wide variety of applications.
It only takes up the space of 1 module in a switchboard or sub board to save space and can be wired from the top or bottom to speed up installation time.
Features
- Type A
- 18mm Width (1P+N)
- ON/OFF Indicators
- In: 0.03A
- 35mm DIN Rail Mounting
- Up to 10mm2 Cable
- Lockable Toggle
- LINE/LOAD in top or bottom – Can be wired either way!
- Full Australian Approvals SAA-151653-EA
- Tested and Listed on ESV’s Website for RCBO’s that pass the 2019 additional testing!
- 5 Year Warranty
- 6kA Rating
- 32amp
- Single Pole
Application
- Single phase Power circuits
- Lighting circuits
- Air conditioning circuits
- Consumer units and distribution boards
TRADE PACK DISCOUNT OF 10 PCS IN PACK

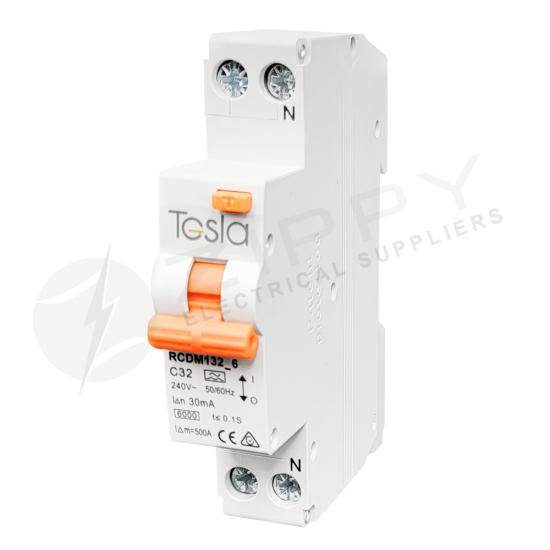

Model Number: RCDM132_6-A
Color: Grey
Voltage and Frequency: 240V, 50/60Hz
Trip Curve: C Curve
Mounting: Din Rail
Type: A
In: 0.03
Poles: 1
Trip Rating: 6kA
Rated Current: 32A
Rated Tripping Current In:30mA
Box Quantity: 10pcs
