Description
Overview:

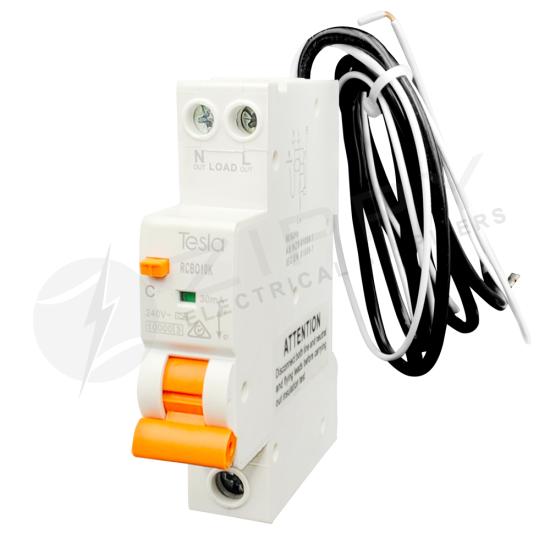

This Tesla 10A 240V single-phase single-pole combination devices incorporate the same housing (one base module wide) and installation features as the MCBs.This range has C-Curve characteristic to suit most applications.
Features and benefits:
- Type A Standard
- Same base module as the 10kA MCBs. Uniformity in space requirements and installation.
- 10amp rating
- Provides protection against Fault/Earth Leakage, Short Circuit and Overload Protection.
- Provides complimentary protection against direct human contact.
- Provides comprehensive protection to household and commercial electrical distribution systems.
- Effective protection for electric equipment against insulation failures.
- Same housing and installation features as the MCBs. Safe, easy and speedy installation.
- Extra long 950mm Neutral line cable.
- Trip-free handle through an over-centre toggle mechanism that ensures tripping even when the handle is held or locked in the ON position.
- A push-test button (T) is positioned on the front of the device for testing.
- 5 Year Warranty
- Approved to Australian AS/NZS 61009.1 Standards
Number of Poles: 1P + N (1 Module)
Rated Current (In): 10amp
Rated Voltage (Un): 230/240 VAC
Breaking Capacity (Icn=Ics): 10kA
Rated Frequency: 50/60Hz
Magnetic Tripping Characteristics: C
Residual Tripping Characteristics: A
Rated Residual Current: 30mA
Electrical Endurance: 10,000 Cycles
Mechanical Endurance: 20,000 Cycles
Terminal: Pillar Type
Cable Termination: 25mm2
Tork of Screw Connector: 2.5Nm
IP Rating: IP20
Operating Temperature C: -5 to 55 Degrees Celsius
Storage Temperature C: -2.5 to 70 Degrees Celsius
Standards: AS/NZS 61009.1
